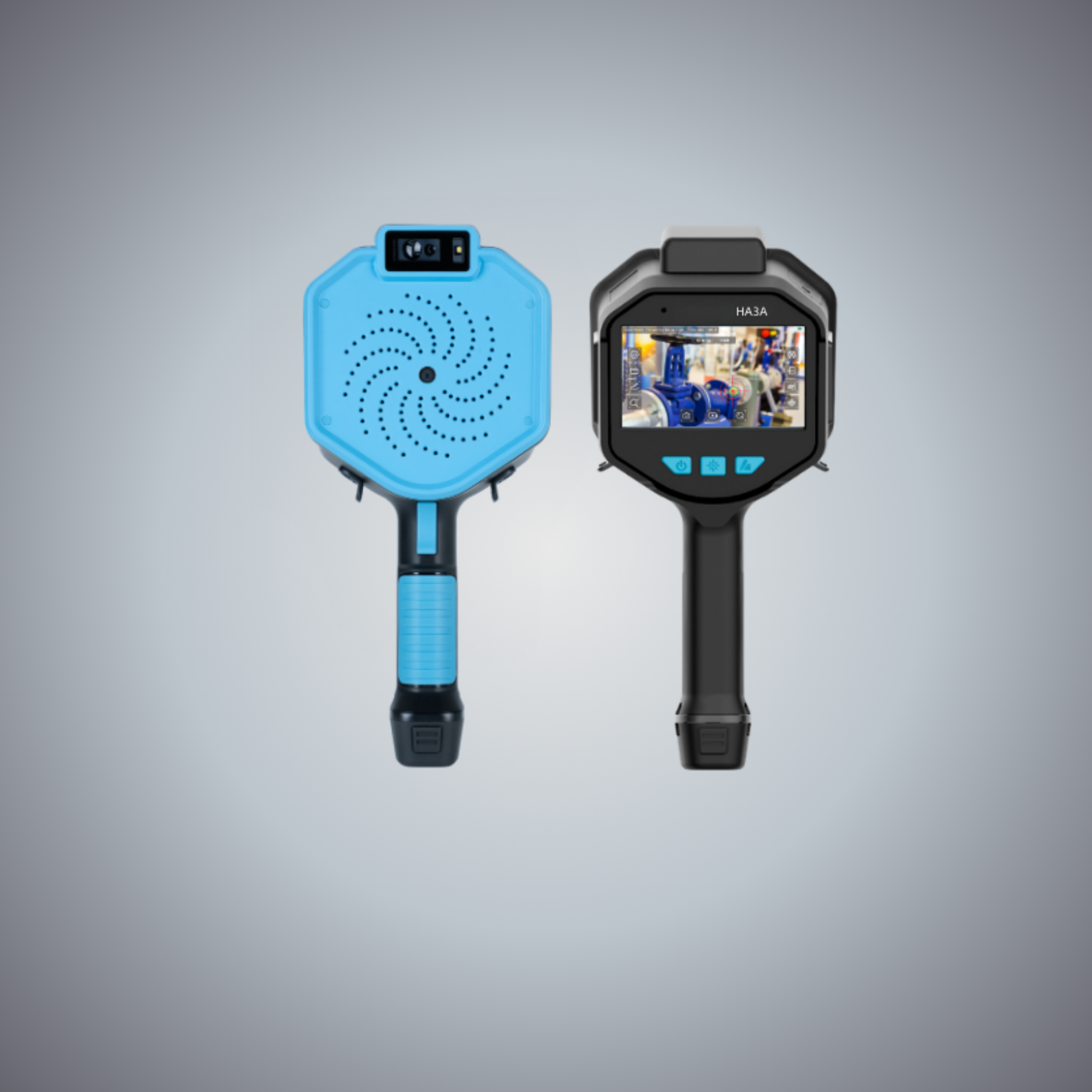

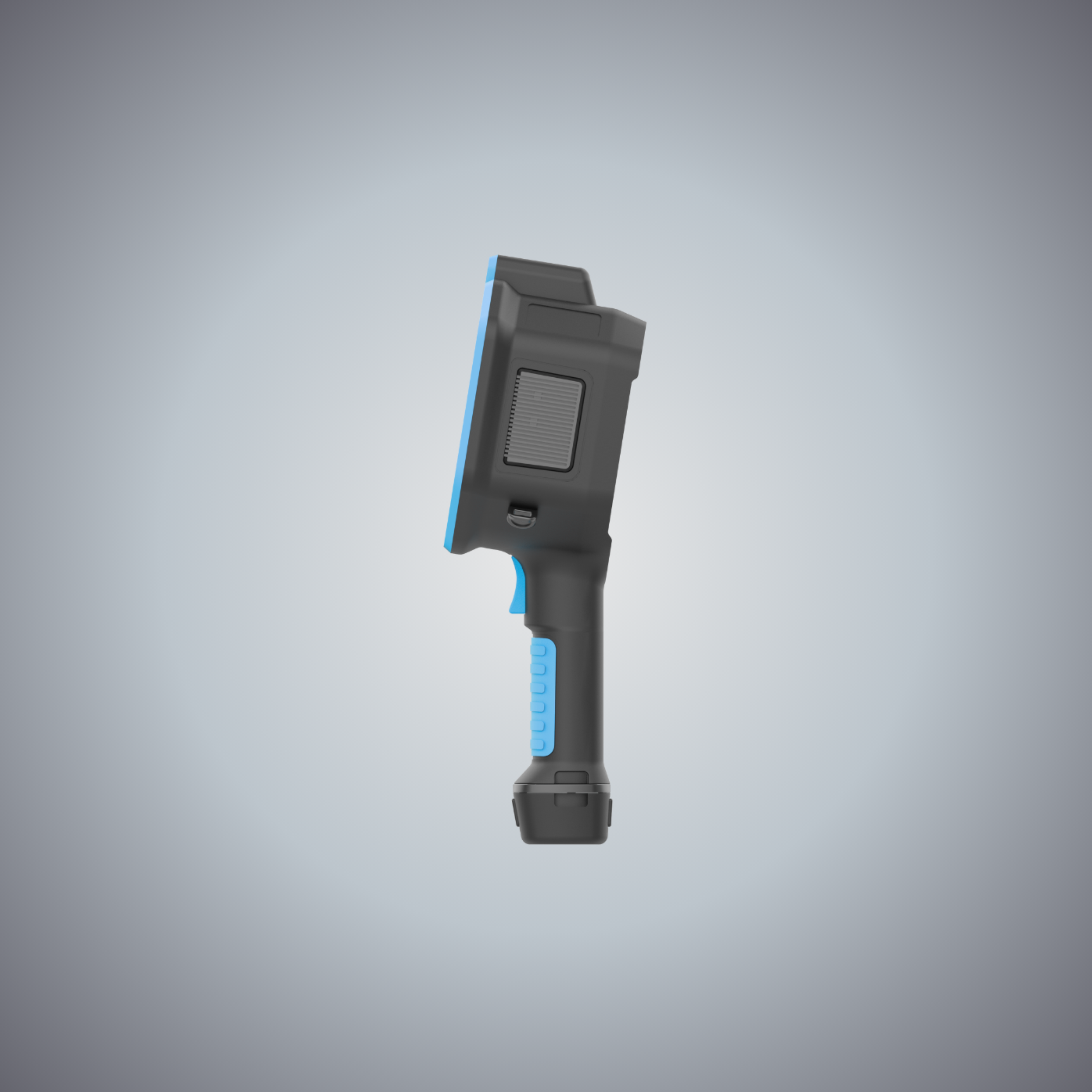

The Hertzinno HA3A, released in 2026, is a dedicated acoustic imaging camera for gas leakage and mechanical noise detection. Equipped with 128 digital MEMS microphones and operating across a 2kHz to 100kHz bandwidth, it provides industrial-grade sensitivity in a highly accessible package. The device features built-in vacuum leak detection and a laser rangefinder, making it the standard tool for facility operations and maintenance teams.

Microphones

128 MEMS Microphone

Bandwidth

2kHz ~ 100kHz

Screen Resolution

1920 x 1080

Weight

less than 1kg

GET A QUOTE

Description
Specifications
Dimension
Package List
Download

Core Diagnostic Capabilities

High-Sensitivity Leak Detection: Identifies pressurized gas and vacuum leaks with a minimum detection threshold of >0.0032 L/min from a distance of 2.5 meters.

Mechanical Fault Identification: Supports the detection of mechanical noise, allowing technicians to isolate abnormal friction or wear in facility equipment.

Precision Localization: Utilizes beamforming algorithms to achieve ±1° localization accuracy, equating to an error margin of ≤1 cm at a 1-meter distance under 40kHz. This enables the clear differentiation of multiple, dense acoustic sources.

Operating Range: Effective detection distance spans from 0.3 meters up to 150 meters.

Model	HA3A
Acoustic
Microphones	128 Digital MEMS Microphones
Frequency Bandwidth	2k ~ 100kHz
Dynamic Range	-30 dB ~ 120 dB
Minimum Imaging Sensitivity	10 kHz: 3 dB SPL 20 kHz: -10 dB SPL 40 kHz: 3 dB SPL 60 kHz: 20 dB SPL
Operating Distance	0.3 m ~ 150 m
Dynamic Range of Multiple Targets	0 dB ~ 18 dB
Space Resolution	≤1 cm @1 m, 40 kHz
Microphone Self-Check	Support
General
Optical Camera	13 MP
Camera FOV	72°±3°
Fill Light	LED Light
Image Resolution	4K ( 3840 × 2160 ), 1080P
Digital Zoom	1/2/4/8
Video Image Resolution	1920 × 1080 @ 30 fps, 1920 × 1080 @ 60 fps
Storage, internal	128GB (SD card)
Annotation	Text, Voice, Photo, Tags
E-Compass	Support
Display	*5-inch, Capacitive Touch Screen, 19201080**
Wi-Fi & Bluetooth	IEEE 802.11a/b/g/n/ac 2.4G/5G & BT4.2
Weight	Less than 1.2 kg
Dimension	333 *mm152 mm115* mm
Working Temperature Range	-20℃ ~ 55 ℃
Storage Temperature Range	-40℃ ~ 85 ℃
Humidity	10%~95% ( non-condensing )
Laser Distance Measurement	0.1 – 30 m(±1 mm) (Laser Class II, 620 -690 nm, ＜1 mw)
Data Transmission	USB, Wi-Fi
USB Port	Type-C
Battery	Li-Ion Rechargeable Battery
Charging Time	2.5 h ( from 10% to 90%) & PD Fast Charging
Protection Level	IP54
Tripod Mount	UNC 1 /4-20
Gas Leakage Detection	>0.0032 L/min from 2.5 m
Mechanical Noise	YES
